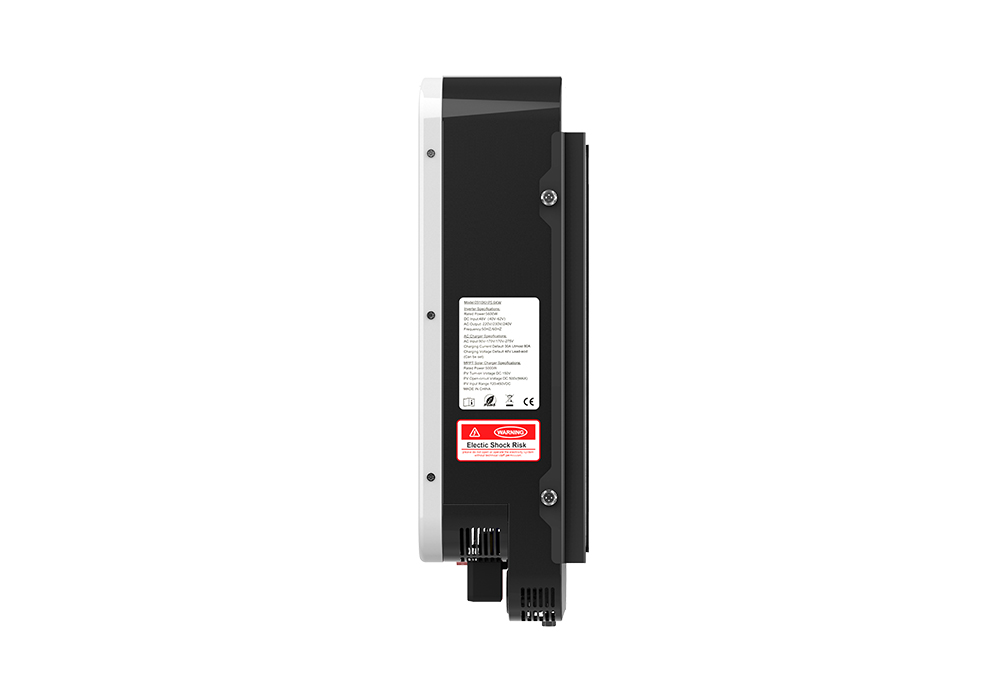

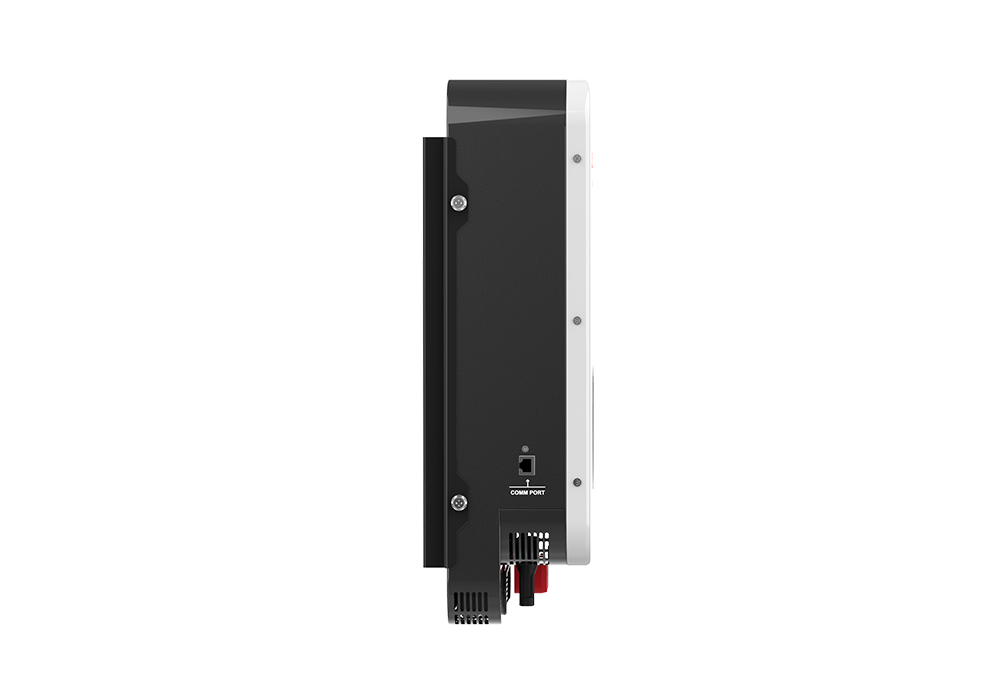

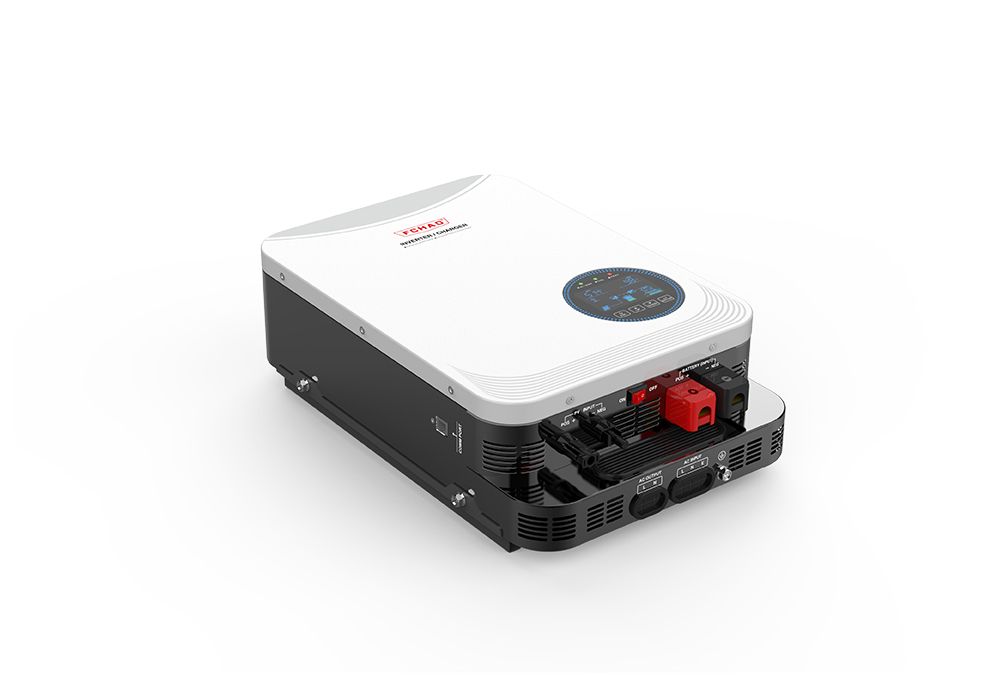

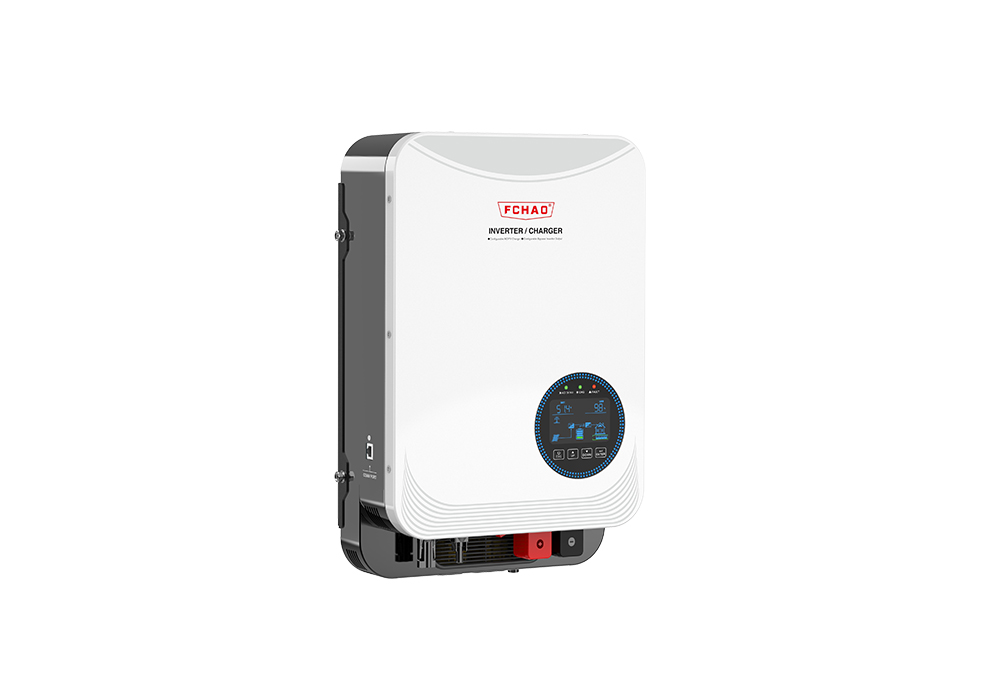

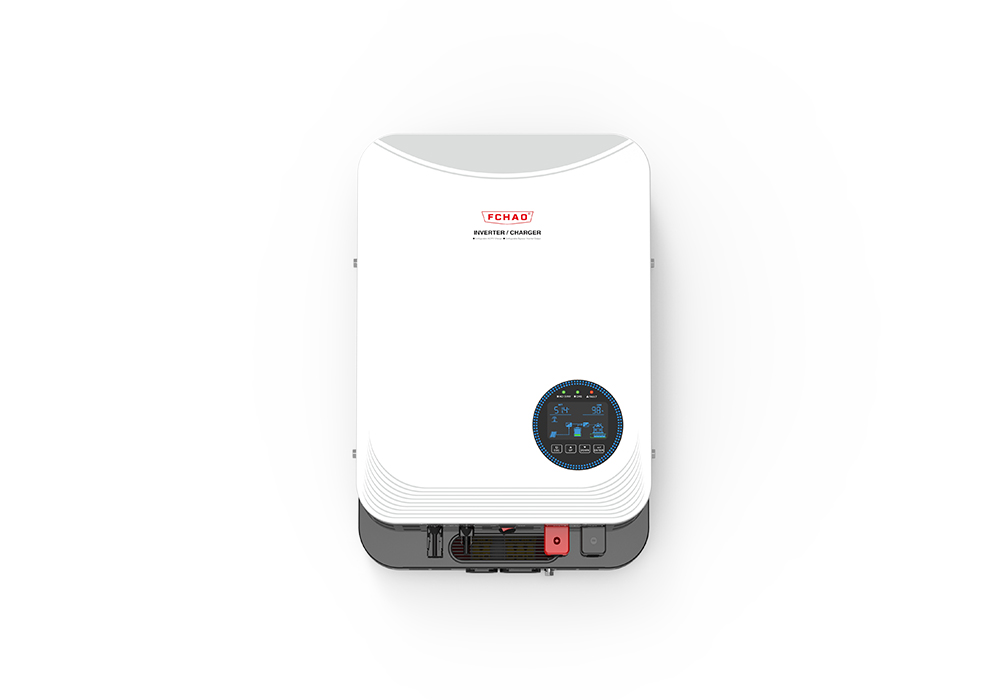

0918KHP-6.2KW-03A-48VTechnical parameters.pdf

Table1:AC Line Mode Specification Table (UPS Bypass or Charge)

Specifications and models：        0918KHP6.2KW-03A

Input voltage waveform：           Sine wave (utility grid or generator)

Nominal input voltage：            230Vac

Low loss voltage：                 170Vac+7V(UPSbypass);90Vac ±7V(Appliances)

Low loss return voltage：       180Vac+7V(UPSbypass);100Vac+7V(Appliances)

High loss voltage：                 280Vac+7V

High dissipating loop voltage：270Vac+7V

Maximum AC input voltage：   300Vac

Nominal input frequency：       50Hz/60Hz (Automatically detect)

Low loss frequency：           40+1Hz

Low loss return frequency： 42±1Hz

High loss frequency：             65±1Hz

High loss return frequency： 63±1HZ

Output short-circuit protection：   breakers

Efficiency (Line Mode)：            >95% (rated R-load, battery fully charged)

UPS switchover time：              10ms(UPSbypass);20ms(Appliances)

Table 2: Inverter mode form

Rated output power：      6.2KW

Output voltage waveform： Pure sine wave

Output voltage：             230Vac+5%

Output frequency：          50Hz/60HZ

Highest efficiency：            93%

Overload protection：        5s@≥150%load; 10s@110%~150% load

Surge capacity/peak power： 1 times/(2 xrated power for 5 s)

DC input voltage range：  48Vdc-63Vdc

DC cold start POVER boot voltage： 44.0Vdc

Low pressure tips：               @ load≥50% 42Vdcll @ load<50% 44Vdc

Low pressure indicates recovery： 44.0Vdc

Undervoltage protection/shutdown：  @ load ≥ 50% 40Vdc l @ load < 50%41Vdc

Undervoltage recovery/power-on：   Reset Power

Battery overvoltage recovery：        62.0Vdc

Battery overvoltage protection：      63.0Vdc

No-load power consumption：     ≈0.7A

Table 3: Charging Modes form

Maximum Charging Current (AC)： 80A (60A can be set by default)

Maximum Charging Voltage (C.V)：56.4Vdc (Default/Configurable)

Floating charge voltage： 54Vdc (default/configurable)

PV maximum input power：   7.2KW

PV separately charging current： 90A

Nominal PV voltage：          240Vdc

MPPT voltage range of the PV array：   45~450Vdc/65V opening voltage

Highest PV array open-circuit voltage：  500Vdc

Mixed Maximum Charge Current =

Grid Charging + Solar Charging：              100A

Table 4:General Specifications

Security certifications：      CE

Operating temperature range：-10°C to 50°C

Storage temperature：-15°C~ 60°C

Store humidity：  5% to 95% relative humidity(non-condensing)

Dimensions (L*VV*H)MM：460mm*300mm*120mm

Product net weight (KG)：  9.5KG

Boxing Dimensions:565*400*253MM

Carton weight:10.75KG
